Sistemas de armazenamento residencial (ESS)MUST

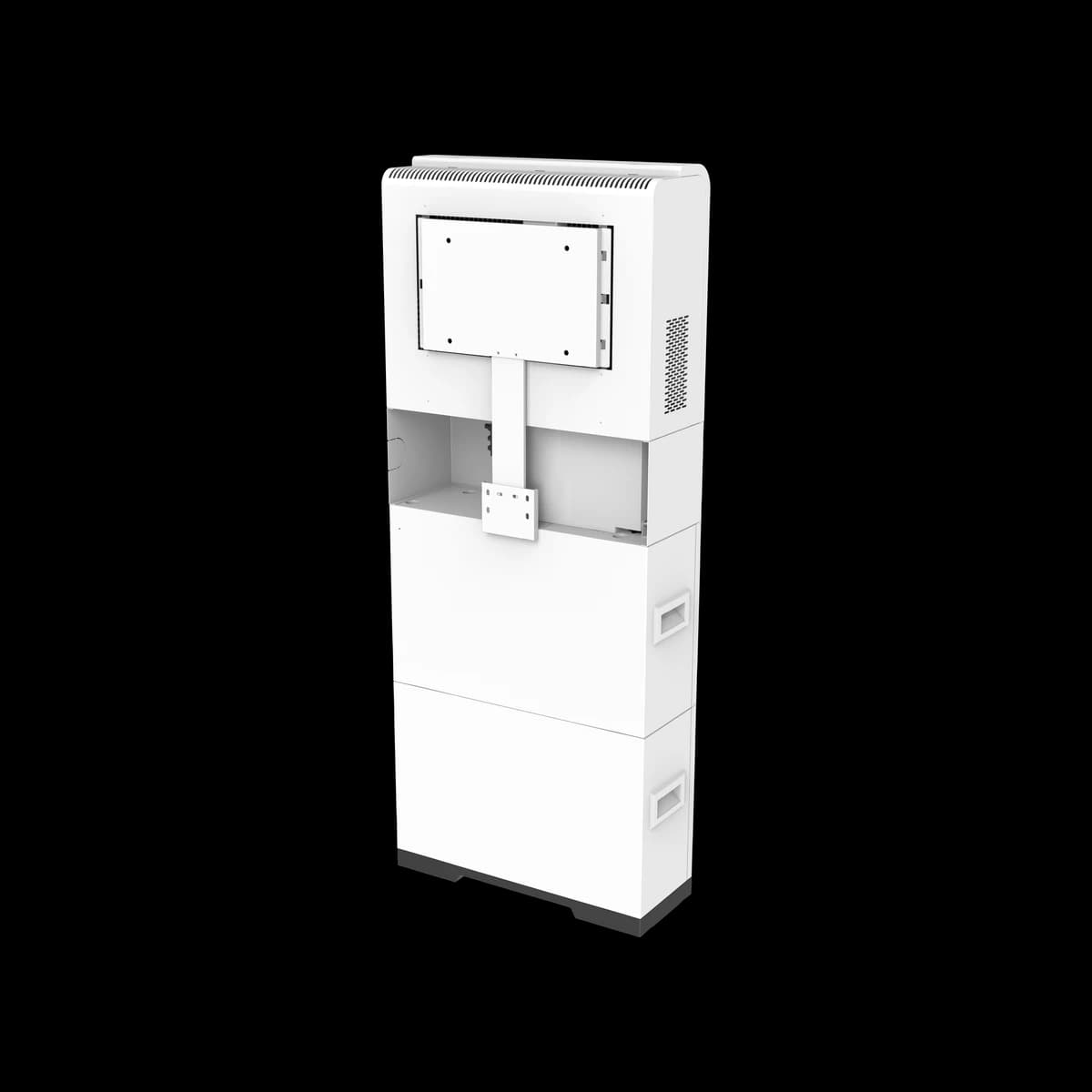

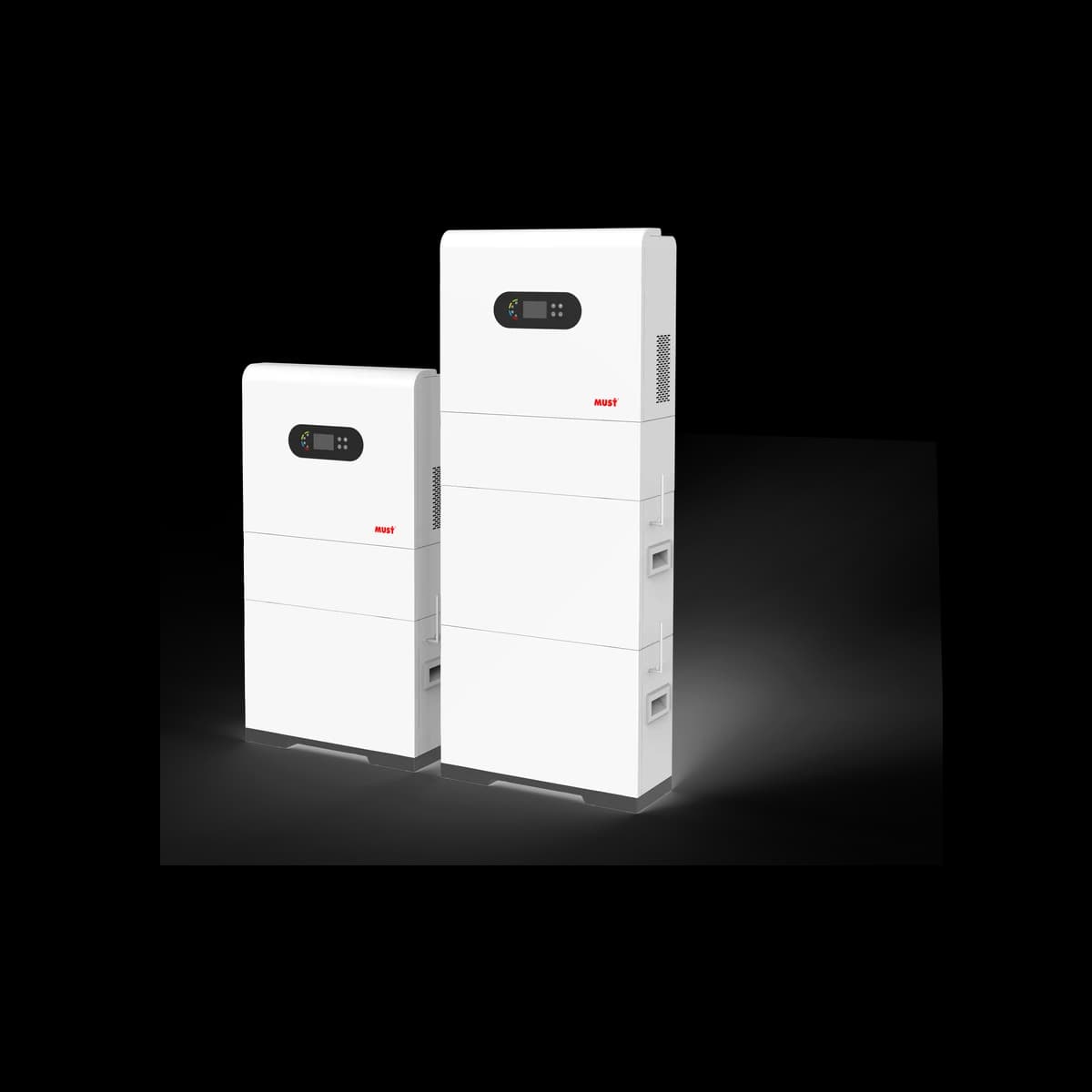

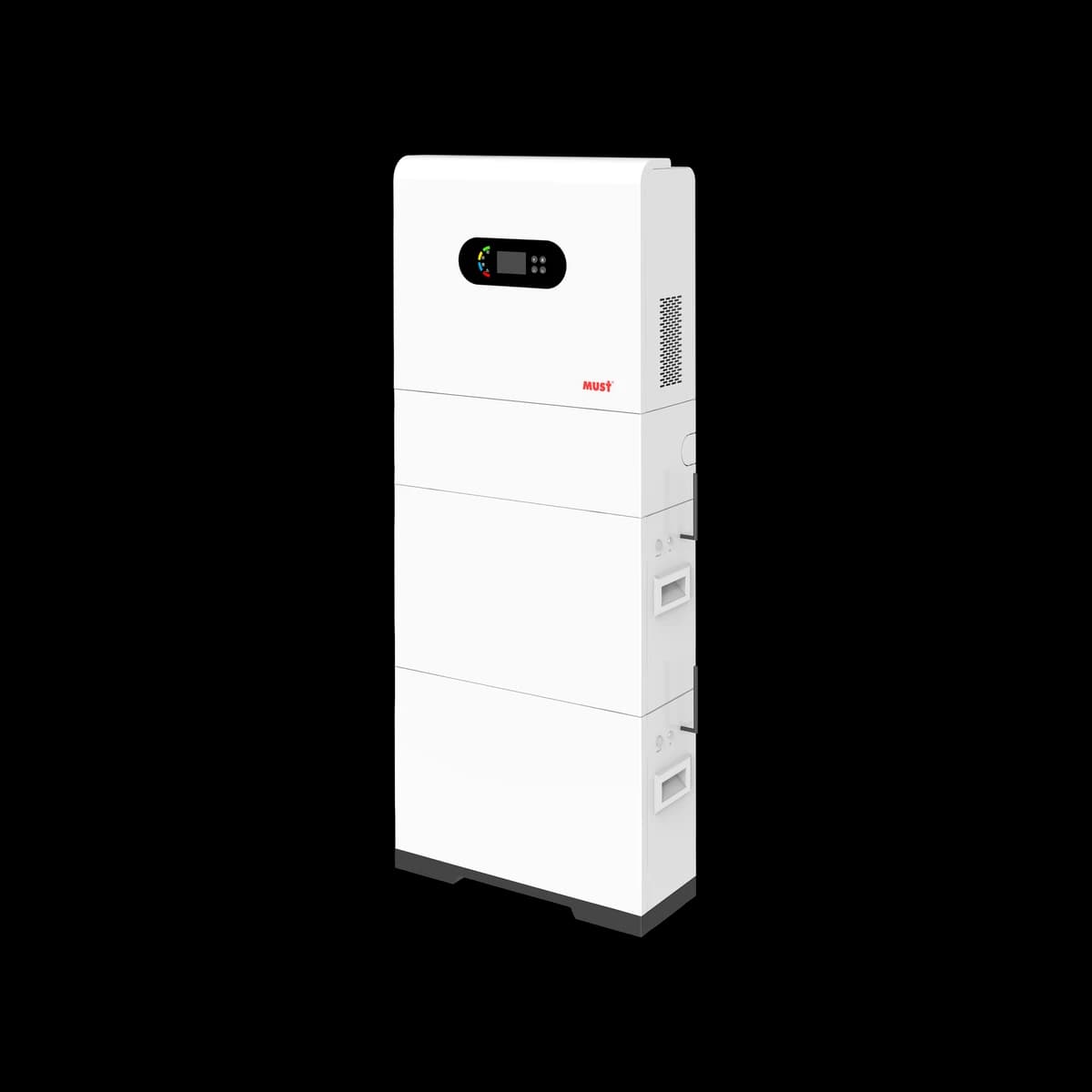

HBP1100 LV
Sistema de armazenamento de energia MUST HBP1100 LV da linha 2026, com potência de 3,6/4 kW e energia de 5,12–15,36 kWh. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência3,6/4 kW
Energia5,12–15,36 kWh
Saída CA120 V
Entrada FVAté 500 V CC
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||||
|---|---|---|---|---|
| MODELO | HBP11-3648 LV | HBP11-4048 LV | ||
| Rated power | 3600W | 4000W | ||
| Nominal Battery System Voltage | 48V | |||
| ENTRADA FV (CC) | ||||
| Maximum recommended DC power | 4000W | 5000W | ||
| Nominal DC operating voltage | 360V | |||
| Maximum DC voltage | 500V | |||
| MPPT voltage range | 120V~500V | |||
| Maximum input current | 15A / 15A | |||
| No.of MPP tracker | 2 | |||
| Strings per MPP tracker | 1 | |||
| INVERTER OUTPUT(AC) | ||||
| Nominal AC output power | 3600W | 4000W | ||
| Nominal output voltage; range | 110/120/130V; 90~140V | |||
| AC grid frequency; range | 50/60Hz; 45~55/55-65Hz | |||
| Nominal output current | 30A | 34A | ||
| Maximum output current | 33A | 36A | ||
| Inrush current (spike/duration) | 72A/5.2us | |||
| Total harmonic distortion i(THDi) | <3% | |||
| Power factor at rated power | 1 | |||
| Displacement power factor | 0.8leading~0.8lagging | |||
| Grid type | Single phase | |||
| BATTERY MODE OUTPUT(AC) | ||||
| Output Rated Power | 3600W | 4000W | ||
| Nominal output voltage; accuracy range | 120±1% | |||
| Output ferequency; accuracy range | 50/60Hz (optional)±0.2% | |||
| Output rated current | 30A | 34A | ||
| Peak power | 5400W,10s | 6000W,10s | ||
| Total harmonic distortion (linear load) | <3% | |||
| BATTERY & CHARGER | ||||
| Note: Below Parameters base on one LiFePO4 Lithium Battery Modular | ||||
| Battery parameter | 51.2VDC 100Ah | |||
| Number of battery pack | 1 | 2 | 2 | 3 |
| Capacity | 5120Wh | 10240Wh | 10240Wh | 15360Wh |
| Charging curve | 3-stage adaptive with maintenance | |||
| Maximum charging power | 3600W | 4000W | ||
| Maximum charging currernt | 75A | 85A | ||
| EFFICIENCY | ||||
| Maximum efficiency | 97.1% | |||
| Euro-efficiency | 96.5% | |||
| MPPT efficiency | 99.8% | |||
| PROTECTION DEVICES | ||||
| DC switch rating for each MPPT; Grid monitoring; Output over current protection; Output overvoltage protection-varistor; Ground fault monitoring; Integrated all-pole sensitive leakage current | ||||
| OUTROS PARÂMETROS | |||
|---|---|---|---|
| MODELO | HBP11-3648 LV | HBP11-4048 LV | |
| ESPECIFICAÇÕES MECÂNICAS | |||
| Machine Dimension (W*H*D)(mm) (Inverter+Battery) | 594*1154*220(5120Wh); 594*1559*220 (10240Wh); 594*1964*220 (15360Wh) | ||
| Package Dimension (W*H*D)(mm) | Inverter | 900*335*714 | |
| Battery | 666*280*483 (Single Battery) | ||
| N.W(kg) | Inverter | 42 | |
| Battery(51.2V100Ah) | 52 | ||
| G.W(kg) | Inverter | 55 | |
| Battery(51.2V100Ah) | 57 | ||
| Standard Warranty | Inverter: 5 years ; Lithium battery: 5 years | ||
| OUTROS | |||
| Operating Temperature Range | -15°C to 40°C | ||
| Ingress protection rating | IP66 | ||
| Audible Noise | 60dB MAX | ||
| Display | LED+LCD | ||
| CERTIFICAÇÕES E NORMAS | |||
| CE-EMC | |||
O preço depende do modelo e da configuração.
