PH9100 EU-HM

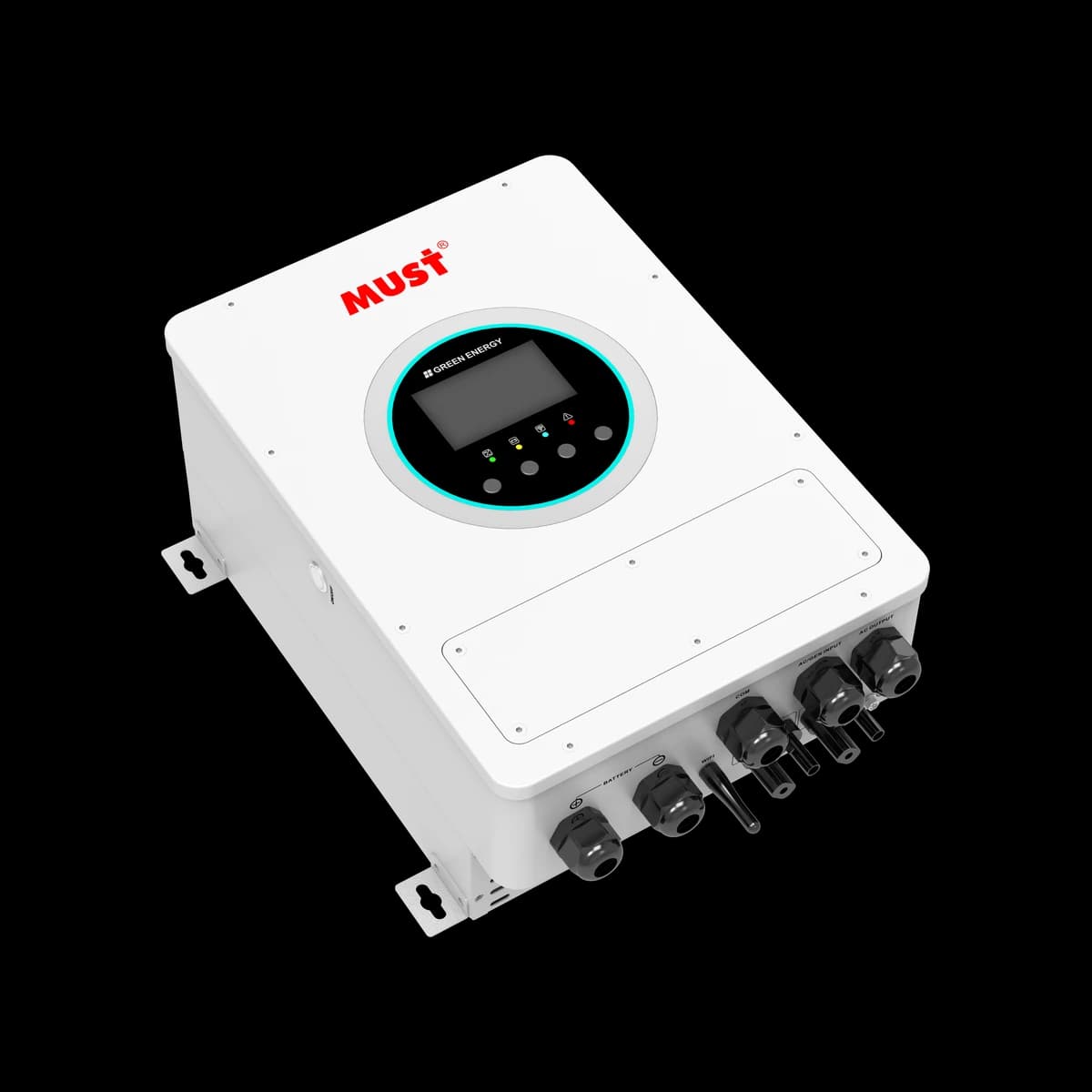

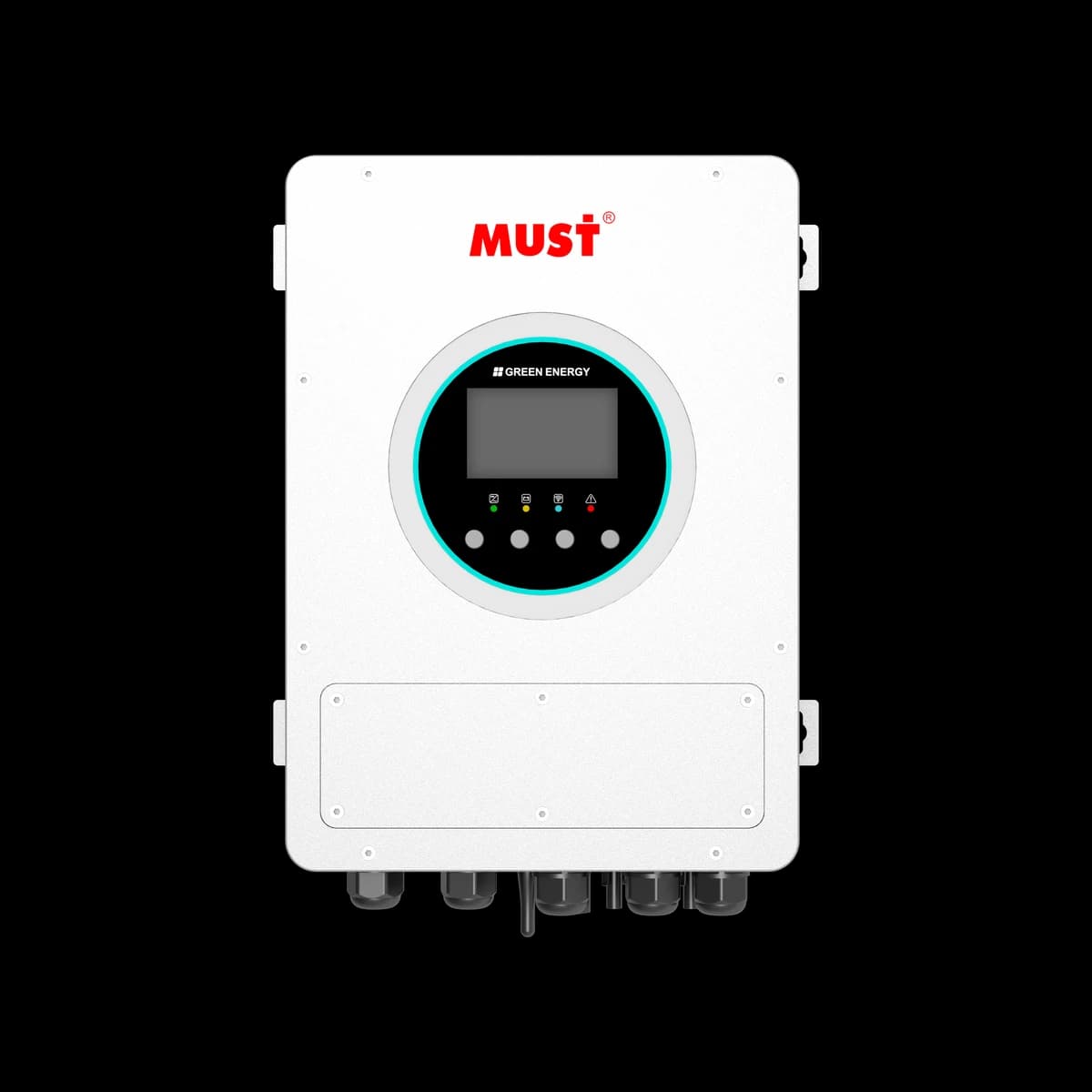

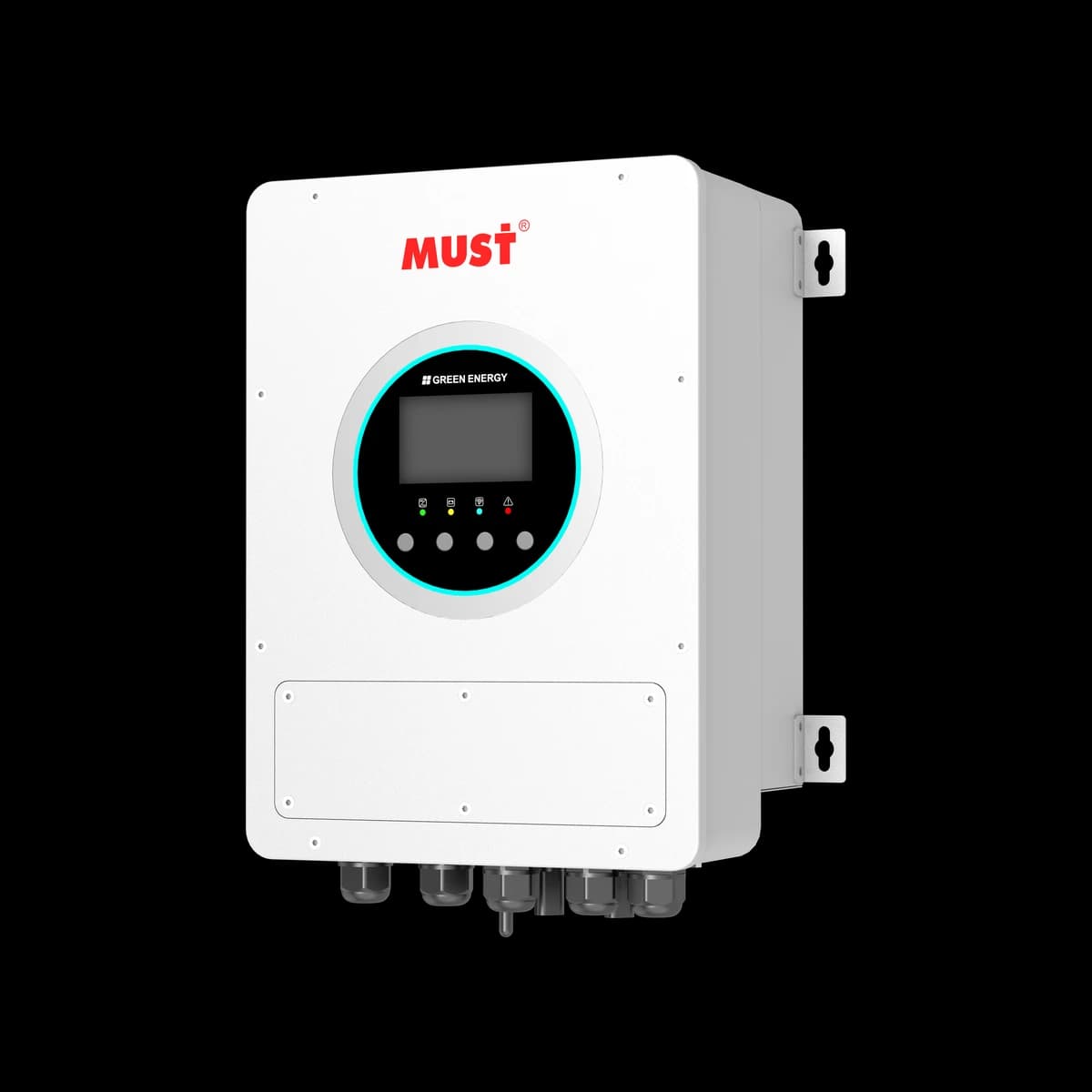

Inversor solar MUST PH9100 EU-HM da linha 2026, com potência de 3,6–12 kW e banco de baterias de 48 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência3,6–12 kW
Bateria48 V
ComunicaçãoWi-Fi
ProteçãoIP66
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||||||
|---|---|---|---|---|---|---|
| MODELO | PH91-3.6KL1-EU-HM | PH91-5KL1-EU-HM | PH91-6KL1-EU-HM | PH91-8KL1-EU-HM | PH91-10KL1-EU-HM | PH91-12KL1-EU-HM |
| Rated power | 3600W | 5000W | 6000W | 8000W | 10000W | 12000W |
| DADOS DE ENTRADA DA BATERIA | ||||||
| Battery type | Lead-acid battery / Lithium battery | |||||
| Battery voltage | 48V | |||||
| Battery voltage range | 40~60V | |||||
| Charging curve | 3-stage adaptive with maintenance/Equalization | |||||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | |||||
| Maximum charging/discharging power | 3600W | 5000W | 6000W | 8000W | 10000W | 12000W |
| Maximum charging/discharging current | 90A | 120A | 150A | 180A | 210A | 230A |
| DADOS DA ENTRADA FV | ||||||
| Max. PV access power | 7200W | 10000W | 12000W | 18000W | 22000W | 26000W |
| Max. PV input power | 7200W | 10000W | 12000W | 16000W | 20000W | 24000W |
| Max. PV Input Voltage (Voc) | 500V | |||||
| Start-up Voltage | 125V | |||||
| PV Input Voltage Range | 125~500V | |||||
| Full Load Voltage Range | 300~425V | |||||
| Rated PV Input Voltage | 370V | |||||
| Max.Operating PV Input Current | 18A+18A | 18A+18A | 18A+18A | 32A+32A | 36A+36A | 36A+36A |
| No.of MPP Trackers | 2/1+1 | 2/1+1 | 2/1+1 | 2/2+2 | 2/2+2 | 2/2+2 |
| Input terminal type | H4/MC4 | |||||
| AC INPUT/OUTPUT DATA | ||||||
| Rated AC Output Power | 3600W/3600VA | 5000W/5000VA | 6000W/6000VA | 8000W/8000VA | 10000W/10000VA | 12000W/12000VA |
| Rated AC Output Current | 15.7A | 21.7A | 26A | 34.7A | 43.4A | 52.2A |
| Max. AC Input Current | 35A | 35A | 35A | 62.2A | 81.8A | 81.8A |
| Rated Input/Output Voltage/Range | 230VAC | |||||
| Rated Input/Output Grid Frequency | 60Hz±5Hz/ 50Hz±5Hz | |||||
| Rated output power factor | 1 | |||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||
| Total Harmonics Current Distortion (THDi) | <3% | |||||
| Grid Type | Single phase | |||||
| EFFICIENCY | ||||||
| Max. Efficiency | 97.5% | |||||
| Euro Efficiency | 96.5% | |||||
| MPPT Efficiency | >99% | |||||
| PROTECTION | ||||||
| Integrated | DC Polarity Reverse Connection Protection; AC Output Overcurrent Protection; AC Output Overvoltage Protection; AC Output short Circuit Protection; lsland Protection Monitoring; Integrated all-pole sensitive leakage current(opention); ISO monitoring(opention); Over temperature protection; Gird monitoring; Surge proterction level, Battery Input Over-current protection/ Battery Input Battery Over-temperature protection | |||||
| Surge Protection | Type II (DC); Type II (AC) | |||||
| Overvoltage Category | OVC II (DC); OVC III (AC) | |||||
| OUTROS PARÂMETROS | ||||||
|---|---|---|---|---|---|---|
| MODELO | PH91-3.6KL1-EU-HM | PH91-5KL1-EU-HM | PH91-6KL1-EU-HM | PH91-8KL1-EU-HM | PH91-10KL1-EU-HM | PH91-12KL1-EU-HM |
| GENERAL DATA | ||||||
| Operating Temperature Range (°C) | -25°C~+60°C, >45°C Derating | |||||
| Permissible Ambient Humidity | 0~100% | |||||
| Cooling | Fan cooling | |||||
| Noise (dB) | ≤50dB | ≤55dB | ||||
| Altitude | 3000m, >3000m Derating | |||||
| Inverter Topology | Battery-side transformer isolation, PV-side non-transformer isolation | |||||
| Communication | WiFi/RS485/CAN/Bluetooth | |||||
| Display | 4.3-inch touch screen+LED | |||||
| Protection Degree | IP66 | |||||
| Installation Style | Wall-mounted | |||||
| ESPECIFICAÇÕES MECÂNICAS | ||||||
| Machine Dimension (W*H*D)(mm) | 321*431*187 | 378*606*238 | ||||
| Warranty | 5 year | |||||
| CERTIFICAÇÕES E NORMAS | ||||||
| IEC/EN61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
O preço depende do modelo e da configuração.
