PH1100 PRO

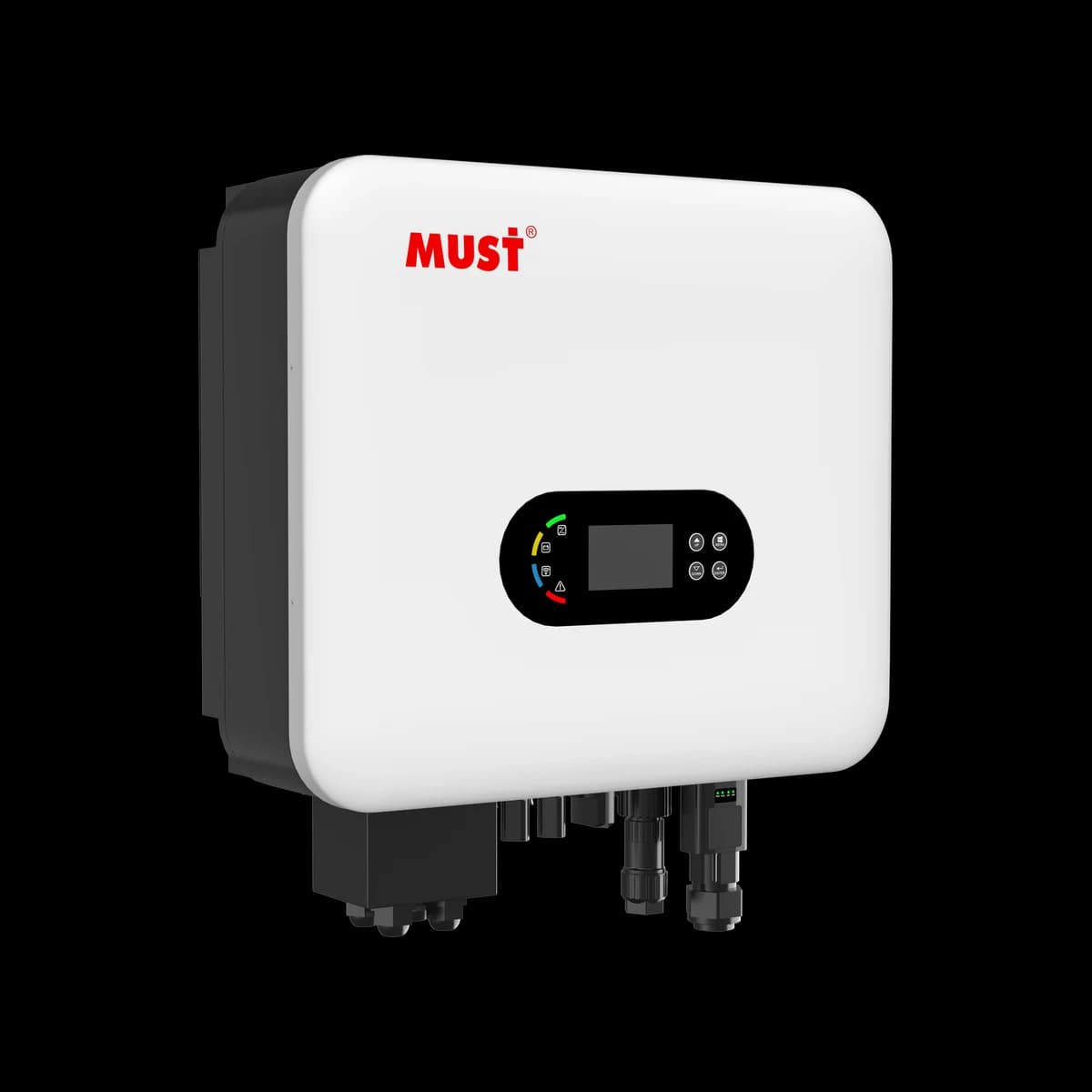

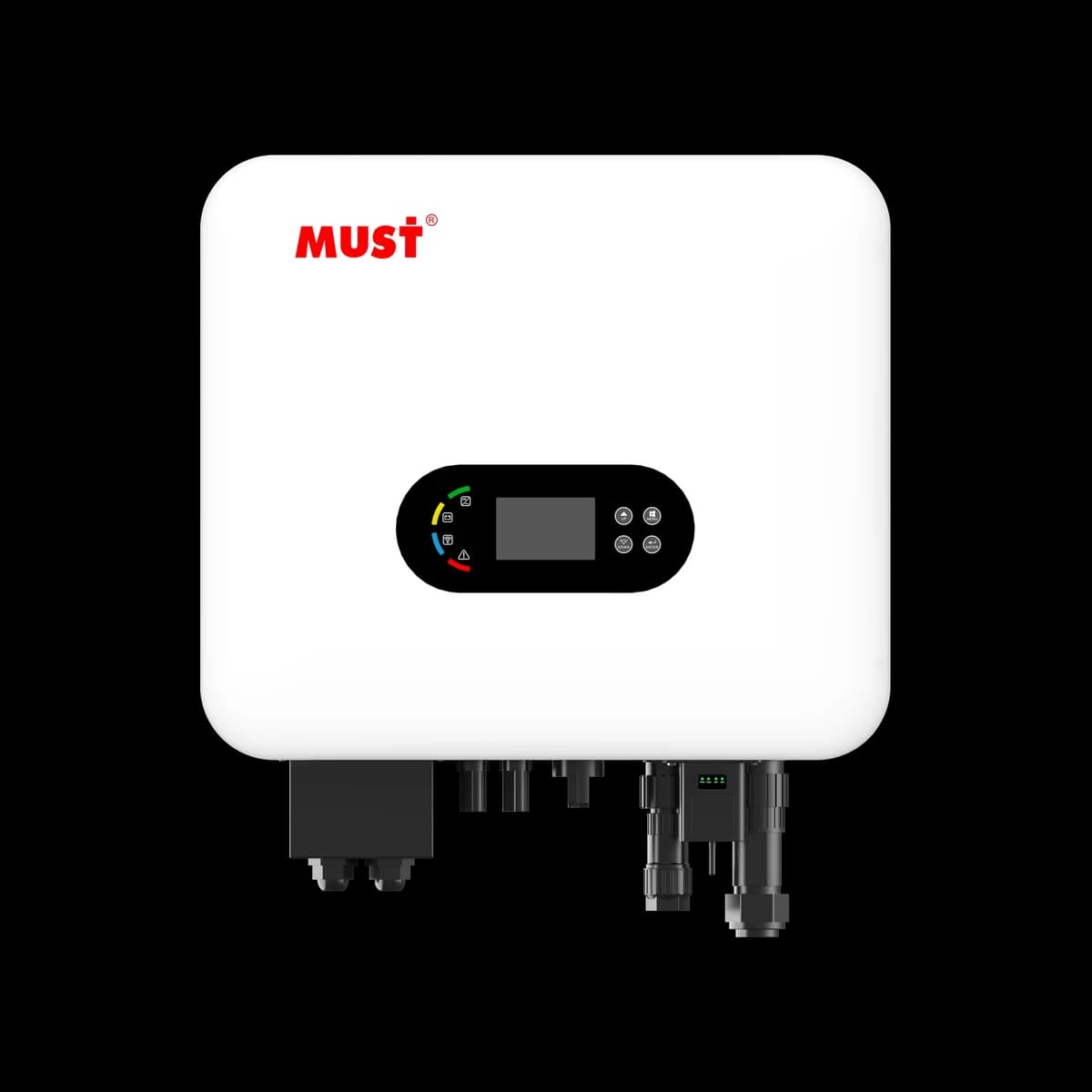

Inversor solar MUST PH1100 PRO da linha 2026, com potência de 3,6–6 kW e configuração monofásica. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência3,6–6 kW
FaseMonofásico
Entrada FVAté 500 V CC
ProteçãoIP66
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||||
|---|---|---|---|---|
| MODELO | PH11-3648 PRO | PH11-4048 PRO | PH11-5048 PRO | PH11-6048 PRO |
| Rated power | 3600W | 4000W | 5000W | 6000W |
| Nominal Battery System Voltage | 48V | |||
| ENTRADA FV (CC) | ||||
| Maximum recommended DC power | 4700W | 5200W | 6500W | 7800W |
| Nominal DC operating voltage | 360V | |||
| Maximum DC voltage | 500V | |||
| MPPT voltage range | 120V~500V | |||
| Maximum input current | 15A / 15A | |||
| No.of MPP tracker | 2 | |||
| Strings per MPP tracker | 1 | |||
| INVERTER INPUT/ OUTPUT(AC) | ||||
| Nominal AC input/ output power | 3600W | 4000W | 5000W | 6000W |
| Nominal input/ output voltage; range | 220/230/240V;180-280V | |||
| AC grid frequency; range | 50/60Hz; 45~55/55-65Hz | |||
| Nominal input/ output current | 15.6A | 17.5A | 21.7A | 26A |
| Maximum input/ output current | 16A | 18.1A | 22.7A | 27.2A |
| Inrush current (spike/duration) | 57.5A/5.2us | |||
| Total harmonic distortion i(THDi) | <3% | |||
| Power factor at rated power | 1 | |||
| Displacement power factor | 0.8leading~0.8lagging | |||
| Grid type | Single phase | |||
| BATTERY MODE OUTPUT(AC) | ||||
| Output Rated Power | 3600W | 4000W | 5000W | 6000W |
| Nominal output voltage; accuracy range | 230V±1% | |||
| Output ferequency; accuracy range | 50/60Hz (optional)±0.2% | |||
| Output rated current | 15.6A | 17.5A | 21.7A | 26A |
| Peak power | 5400W,10s | 6000W,10s | 7500W,10s | 9000W,10s |
| Total harmonic distortion v (linear load) | <3% | |||
| BATTERY & CHARGER | ||||
| Battery type | Lead-acid battery / Lithium battery | |||
| Battery voltage | 48V | |||
| Battery voltage range | 40~60V | |||
| Maximum charging power | 3600W | 4000W | 5000W | 6000W |
| Maximum charging currernt | 75A | 85A | 100A | 125A |
| EFFICIENCY | ||||
| Maximum efficiency | 97.1% | |||
| Euro-efficiency | 96.5% | |||
| MPPT efficiency | 99.8% | |||
| PROTECTION DEVICES | ||||
| Islanding protection, Output overcurrent protection, Output overvoltage protection, DC switch rating for each MPPT, Grid monitoring, Output over current protection, Gird overvoltage protection-varistor, Integrated all-pole sensitive leakage current, ISO monitoring, over temperature protection. | ||||
| OUTROS PARÂMETROS | ||||
|---|---|---|---|---|
| MODELO | PH11-3648 PRO | PH11-4048 PRO | PH11-5048 PRO | PH11-6048 PRO |
| Machine Dimension (W*H*D)(mm) | 420*480*215 | |||
| Package Dimension (W*H*D)(mm) | 610*327*595 | |||
| N.W(kg) | 30 | |||
| G.W(kg) | 32 | |||
| DC connection | H4 / MC4 | |||
| AC connection | Terminal Block | |||
| Display | LED+LCD | |||
| Communication interfaces | Wi-Fi / USB / GPRS / RS485 | |||
| Ingress protection rating | IP66 | |||
| Humidity | 0~95% RH(No codensing) | |||
| Operating temperature range | -25°C+60°C With derating above 45°C | |||
| Cooling concept | Natural | |||
| Altitude | <3000m | |||
| CERTIFICAÇÕES E NORMAS | ||||
| CE-EMC+LVD (EN6100-6-3: 2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011); CE-LVD(EN62477-1:2022); IEC60529; EN50549-1:2019 Poland Type A, (NC RfG:2016, PSE:2018, PTPiREE:2021); C10/C11; UNE217001-2020; UNE217002-2020, NTS-631:2021 (Type A); G98+G99 | ||||
O preço depende do modelo e da configuração.
