Inversor solar MUST PH1100 EU-G2 do catálogo 2026
MUST EnergySolução durável
Inversores de 220 VMUST

PH1100 EU-G2

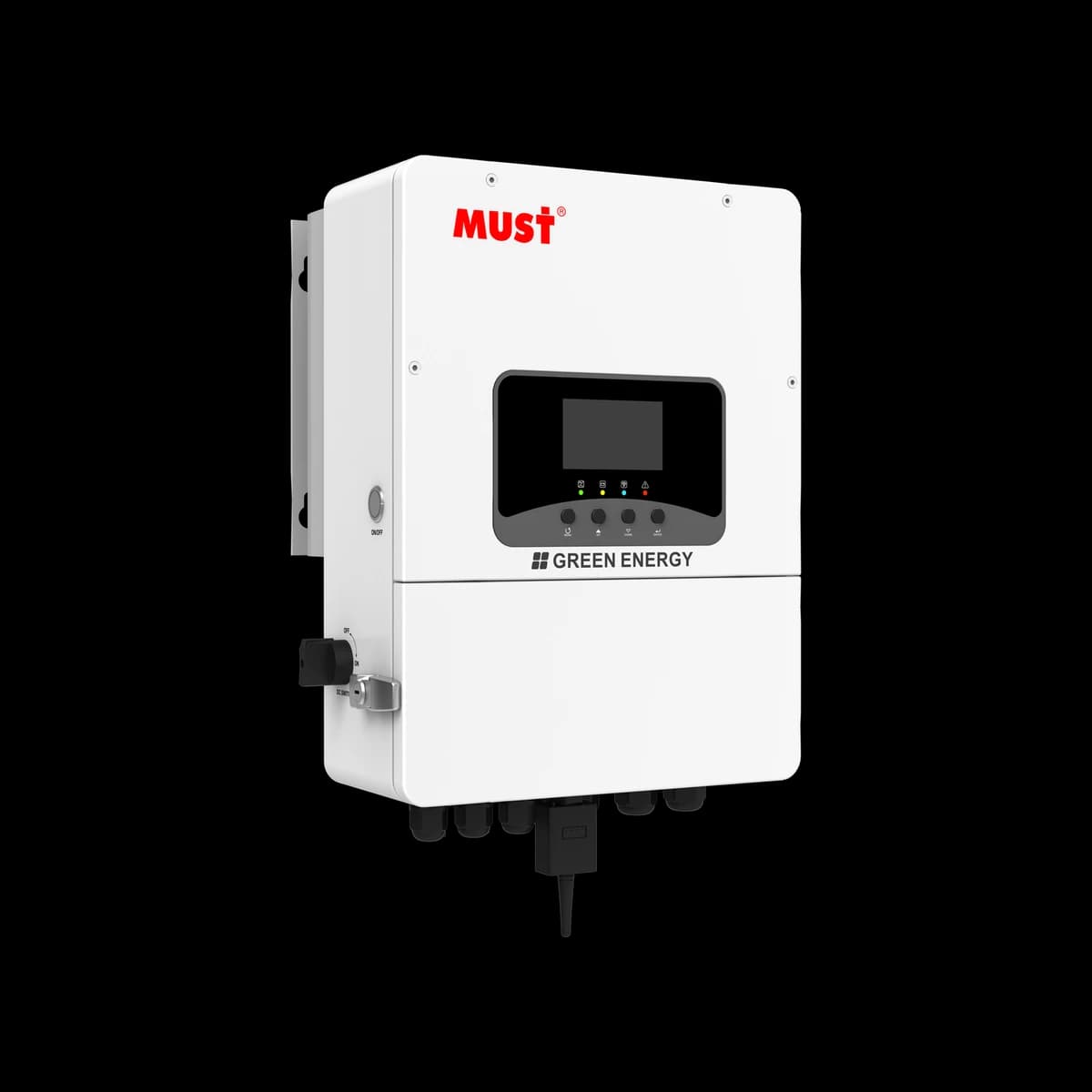

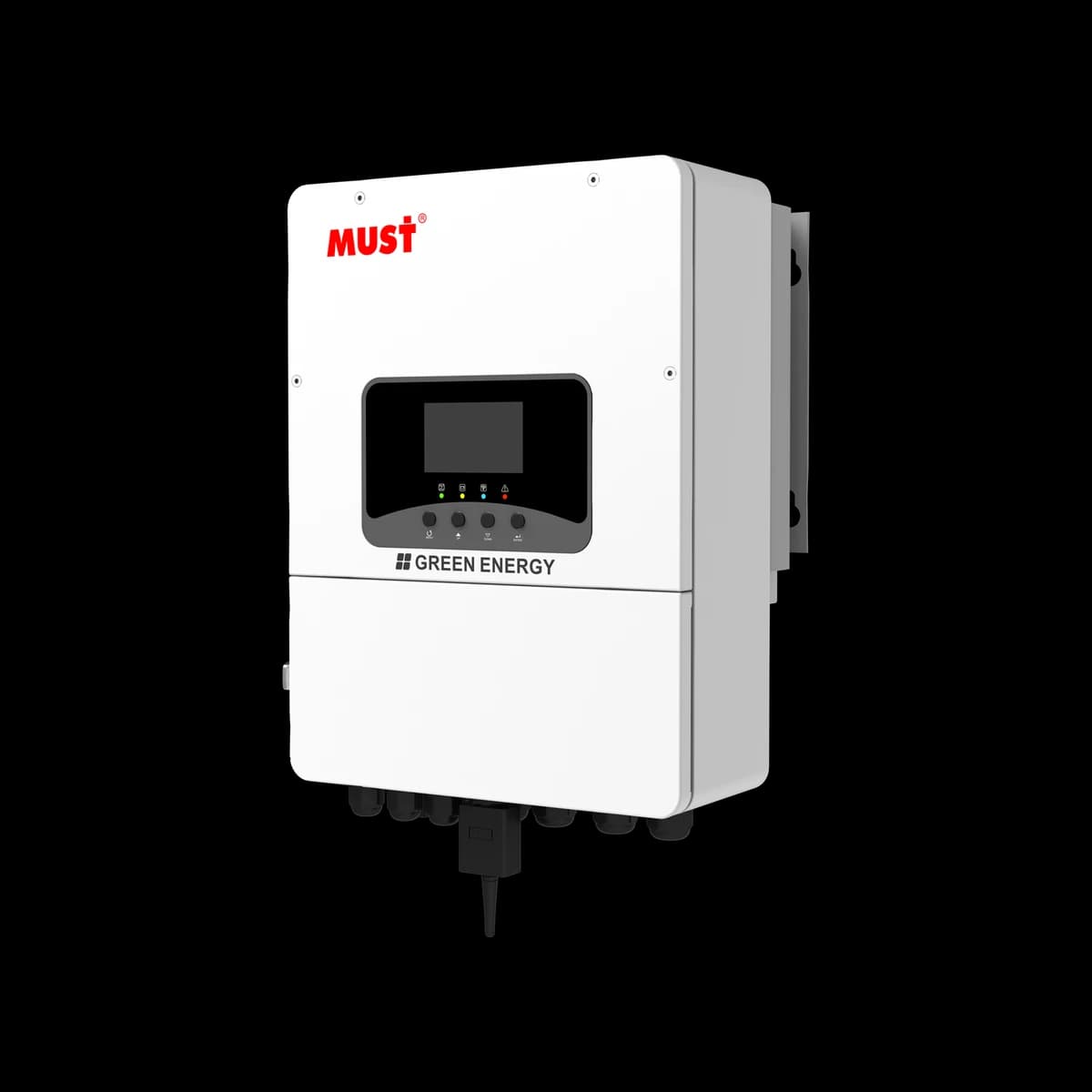

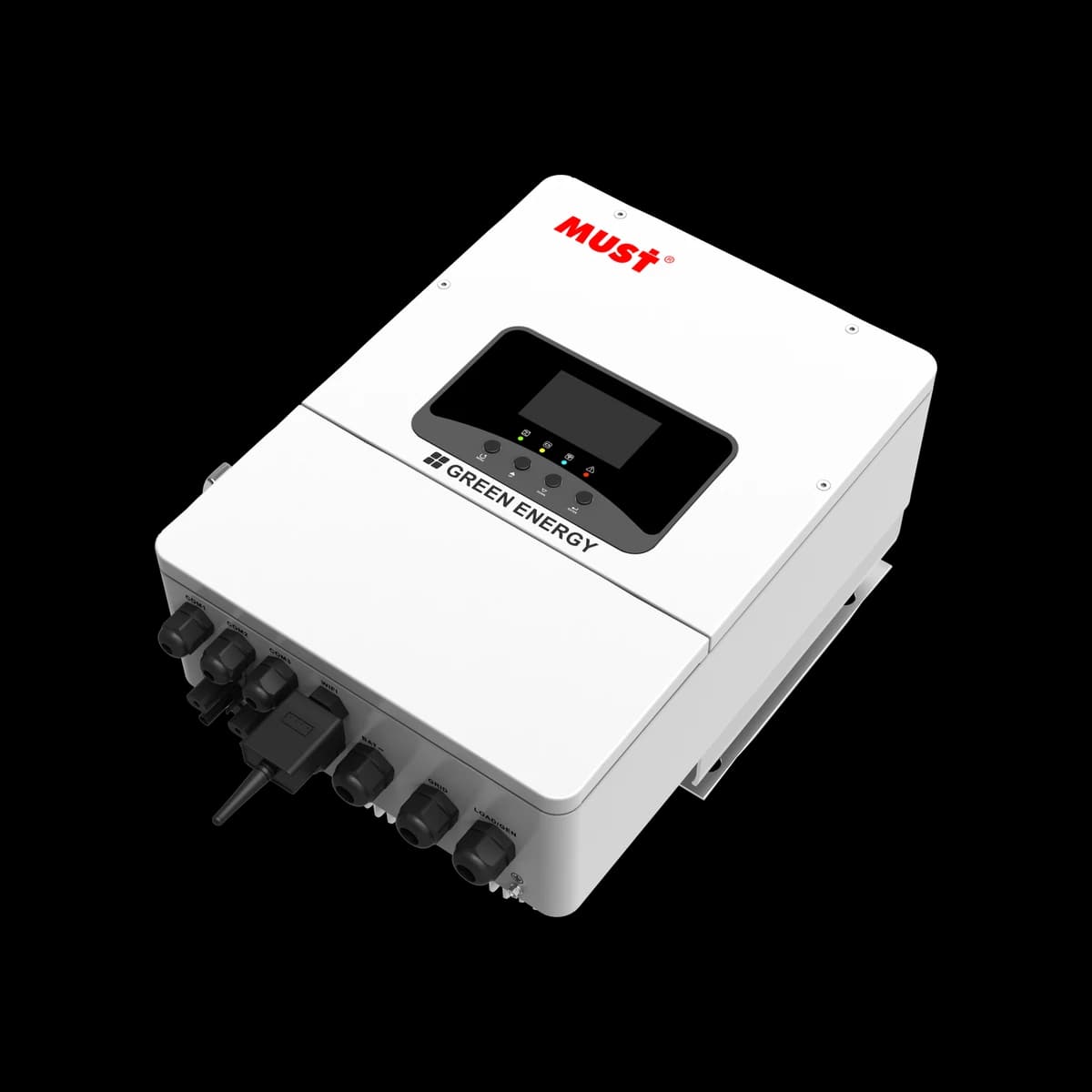

Inversor solar MUST PH1100 EU-G2 da linha 2026, com potência de 3–10 kW e configuração monofásica. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.

Potência3–10 kW
FaseMonofásico
Bateria48 V
ProteçãoIP66
Solicitar orçamento Ficha técnica PDF

Principais parâmetros da série

PARÂMETROS PRINCIPAIS
MODELOPH11-3KL1-EU-G2PH11-3.6KL1-EU-G2PH11-4KL1-EU-G2PH11-5KL1-EU-G2PH11-6KL1-EU-G2PH11-7KL1-EU-G2PH11-7.6KL1-EU-G2PH11-8KL1-EU-G2PH11-10KL1-EU-G2
DADOS DE ENTRADA DA BATERIA
Battery typeLead-acid battery / Lithium battery
Battery voltage48V
Charging curve4-stage adaptive with maintenance/Equalization
Maximum charging/discharging power3000W3600W4000W5000W6000W7000W7600W8000W10000W
Maximum charging/discharging current75A90A100A120A135A175A190A190A210A
DADOS DA ENTRADA FV
Max. DC Input Power6000W7200W8000W10000W12000W14000W15200W16000W20000W
Maximum DC voltage550V
Start-up Voltage125V
Full Load DC Voltage Range167-500V200-500V153-500V192-500V230-500V218-500V238-500V250-500V278-500V
Minimum voltage for grid connection150V
Maximum input current18A+18A18A+18A26A+26A26A+26A26A+26A32A+32A32A+32A32A+32A36A+36A
No.of MPP Trackers222222222
Input terminal typeH4/MC4
AC INPUT/OUTPUT DATA
Rated AC Input/Output Active Power3000W3600W4000W5000W6000W7000W7600W8000W10000W
Max. AC Input/Output Apparent Power3300VA3960VA4400VA5500VA6600VA7700VA8360VA8800VA11000VA
Rated Input/Output Voltage/Range220/230/240VAC
Rated Input/Output Grid Frequency/
Range		60Hz±5Hz/ 50Hz±5Hz
Rated output power factor1
Power Factor Adjustment Range0.8 leading to 0.8 lagging
Total Harmonics Current Distortion (THDi)<3%
Grid TypeSingle phase
DC Current Injection0.5%
EFFICIENCY
Max. Efficiency97.5%
Euro Efficiency96.5%
MPPT Efficiency>99%
PROTECTION
IntegratedIslanding protection, Output overcurrent protection, Output overvoltage protection, DC switch rating for each
MPPT, Grid monitoring, Output over current protection, Gird overvoltage protection-varistor, Integrated all-pole sensitive leakage current, ISO monitoring, over temperature protection.
Surge ProtectionAC Type III
Overvoltage CategoryAC Type III
OUTROS PARÂMETROS
MODELOPH11-3KL1-EU-G2PH11-3.6KL1-EU-G2PH11-4KL1-EU-G2PH11-5KL1-EU-G2PH11-6KL1-EU-G2PH11-7KL1-EU-G2PH11-7.6KL1-EU-G2PH11-8KL1-EU-G2PH11-10KL1-EU-G2
GENERAL DATA
Operating Temperature Range (°C)-25°C~+60°C, >45°C Derating
CoolingIntelligent Fan
Noise (dB)≤50dB
Altitude3000m, >3000mDerating
TopologyBattery-side transformer isolation, PV-side non-transformer isolation
CommunicationUSB/ WiFi/ Enternet(optional)
Display4.3-inch touch screen
Protection DegreeIP66
ESPECIFICAÇÕES MECÂNICAS
Machine Dimension (W*H*D)(mm)372*564*241
Package Dimension (W*H*D)(mm)479*652*363
N.W(kg)22
G.W(kg)25
Warranty5 year
CERTIFICAÇÕES E NORMAS
NBT32004-2013/EN50549

O preço depende do modelo e da configuração.
