Inversores de 110 VMUST
Série PH1100 US-G2

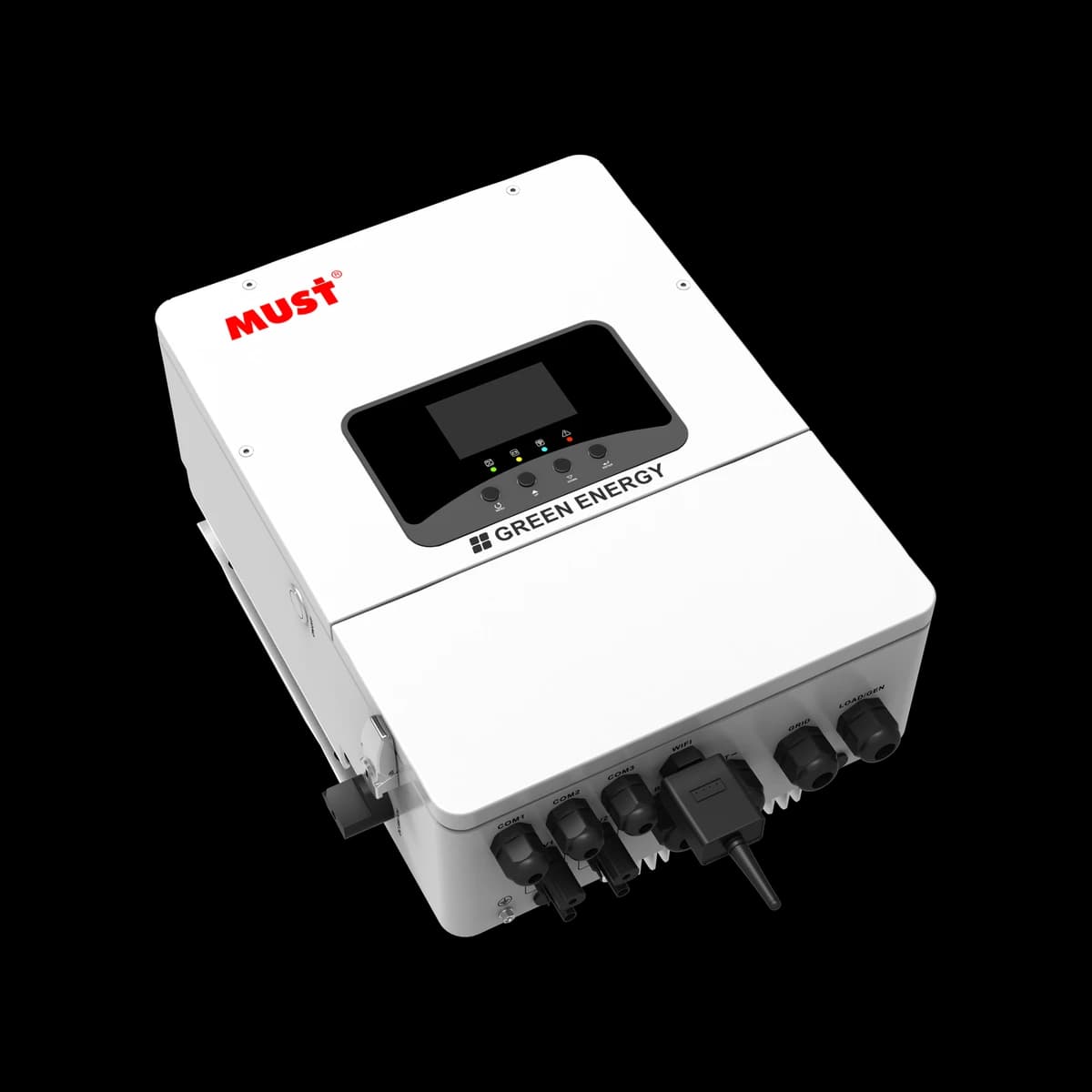

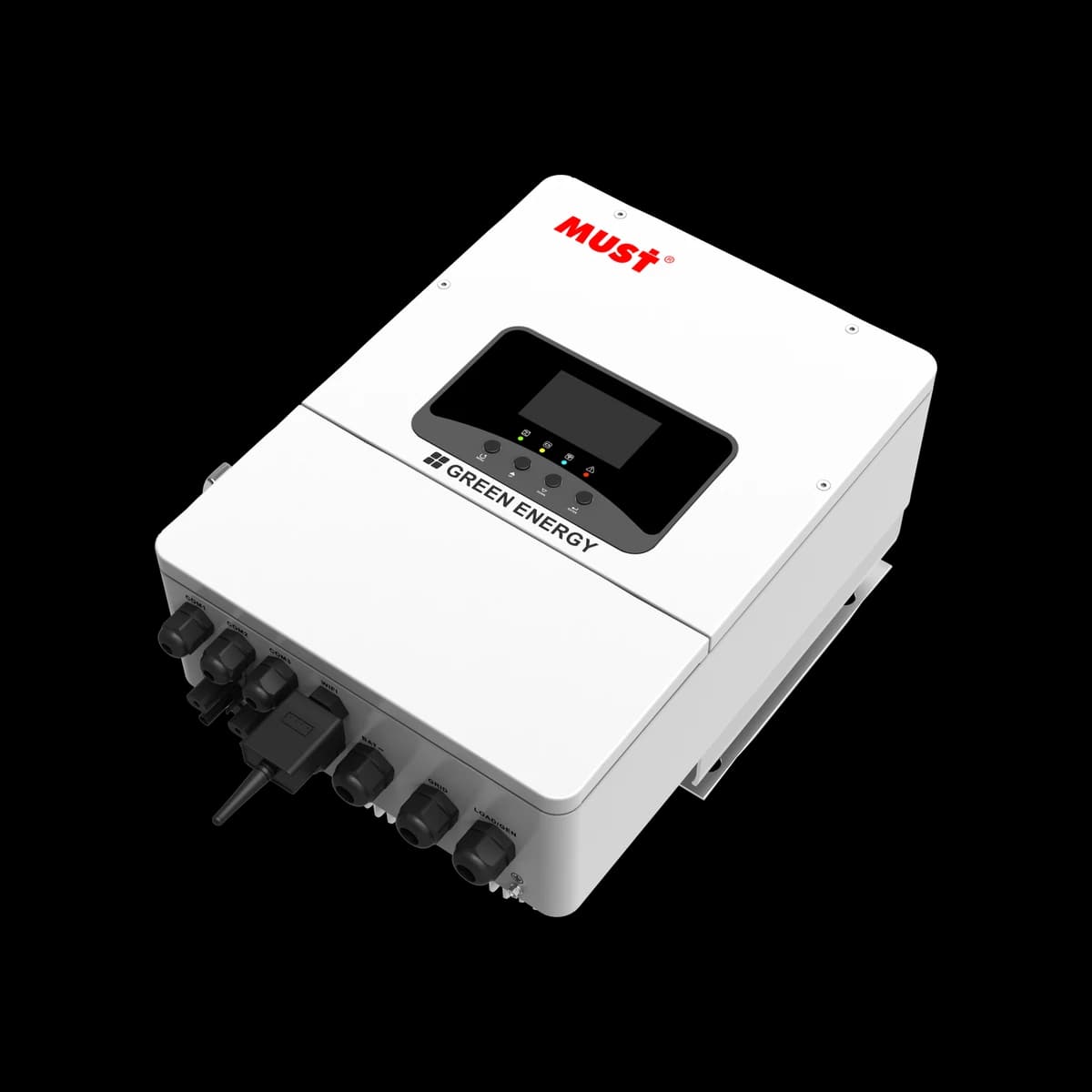

Inversor solar MUST Série PH1100 US-G2 da linha 2026, com potência de 5–12 kW e saída CA de 120/240 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência5–12 kW
Saída CA120/240 V
Bateria48 V
ProteçãoIP66
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | |||||||
|---|---|---|---|---|---|---|---|
| MODELO | PH11-5KL2-US-G2 | PH11-6KL2-US-G2 | PH11-7.5KL2-US-G2 | PH11-7.6KL2-US-G2 | PH11-8KL2-US-G2 | PH11-10KL2-US-G2 | PH11-12KL2-US-G2 |
| Rated power | 5000W | 6000W | 7500W | 7600W | 8000W | 10000W | 12000W |
| DADOS DE ENTRADA DA BATERIA | |||||||
| Battery type | Lead-acid battery / Lithium battery | ||||||
| Battery voltage | 48V | ||||||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | ||||||
| Maximum charging/discharging power | 5000W | 6000W | 7500W | 7600W | 8000W | 10000W | 12000W |
| Maximum charging/discharging current 120A 135A 190A 190A 190A 220A 250A PV STRING INPUT DATA | |||||||
| Max. DC Input Power | 10000W | 12000W | 15000W | 15200W | 16000W | 20000W | 24000W |
| Maximum DC Input Power of each | 5000W | 6000W | 7500W | 7600W | 8000W | 8000W | 8000W |
| Maximum DC voltage | 600V | ||||||
| Start-up Voltage | 125V | ||||||
| Full Load DC Voltage Range | 250~540V | 300~540V | 288~540V | 292~540V | 307~540V | 256~540V | 307~540V |
| Rated PV Input Voltage | 370V | ||||||
| PV Maximum Input Current | 20A+20A | 26A+26A | 26A+26A+26A | ||||
| PV Maximum Short Circuit Current | 44A+44A | 44A+44A | 44A+44A+44A | ||||
| MPPT quantity | 2 | 2 | 3 | ||||
| Number Of MPPT Strings Per Channel | 2+2 | 2+2+2 | |||||
| AC INPUT/OUTPUT DATA | |||||||
| Rated AC Input/output active power | 5000W | 6000W | 7500W | 7600W | 8000W | 10000W | 12000W |
| Max. AC Input/output apparent power | 5500VA | 6600VA | 8250VA | 8360VA | 8800VA | 11000VA | 13200VA |
| Rated AC Input/output current | 20.9A | 25A | 31.3A | 31.7A | 33.4A | 41.7A | 50A |
| Max. AC Input/output current | 22.9A | 27.5A | 34.4A | 34.8A | 36.7A | 45.8A | 55A |
| Max. Continuous AC Passthrough (Grid to Load) | 35A | 40A | 40A | 50A | 50A | 60A | 60A |
| Rated Input/output voltage/ range | 120V/240V:208V | ||||||
| Rated Input/output grid frequeney/ range | 60Hz±5Hz/ 50Hz±5Hz | ||||||
| Rated output power factor | 1 | ||||||
| Power factor adjustment range | 0.8 leading to 0.8 lagging | ||||||
| Total Hamonics CurentDistortion (THDi) | <3% | ||||||
| Grid Type | Split Phase | ||||||
| DC Current Injection | <0.5% | ||||||
| EFFICIENCY | |||||||
| Max. Efficiency | 97.5% | ||||||
| Euro Efficiency | 96.5% | ||||||
| MPPT Efficiency | 99.5% | ||||||
| OUTROS PARÂMETROS | |||||||
|---|---|---|---|---|---|---|---|
| MODELO | PH11-5KL2-US-G2 | PH11-6KL2-US-G2 | PH11-7.5KL2-US-G2 | PH11-7.6KL2-US-G2 | PH11-8KL2-US-G2 | PH11-10KL2-US-G2 | PH11-12KL2-US-G2 |
| PROTECTION | |||||||
| Integrated | Islanding protection, Output overcurrent protection, Output overvoltage protection,PV input polarity reverse protection, DC Switch (optional), Ground Fault Sensing,leakage current monitoring protection, Battery Over-current protection/ Battery Over-temperature protection | ||||||
| Surge Protection | DC Type III/ AC Type III | ||||||
| Overvoltage Category | DC Type II/ AC Type III | ||||||
| GENERAL DATA | |||||||
| Operating Temperature Range (°C) | -25°C~+60°C, >45°C Derating | ||||||
| Cooling | Intelligence Fan | ||||||
| Noise (dB) | ≤52dB | ||||||
| Altitude | 3000m, >3000mDerating | ||||||
| Communication | USB/ WiFi/ Enternet(optional) | ||||||
| Display | 4.3-inch touch screen | ||||||
| Protection Degree | IP66 | ||||||
| Installation Style | Wall-mounted | ||||||
| ESPECIFICAÇÕES MECÂNICAS | |||||||
| Machine Dimension (W*H*D)(mm) | 482*804*313 (excluding connectors and racks) | ||||||
| Package Dimension (W*H*D)(mm) | 575*904*430 | ||||||
| N.W(kg) | 51 | ||||||
| G.W(kg) | 58 | ||||||
| Warranty | 5 year | ||||||
| CERTIFICAÇÕES E NORMAS | |||||||
| Rohs; CE-EMC; CE-LVD (62109-1/-2); INMETRO(Brazil); NBT32004-2013; UL1741; FCC | |||||||
O preço depende do modelo e da configuração.
