EP2100 LV

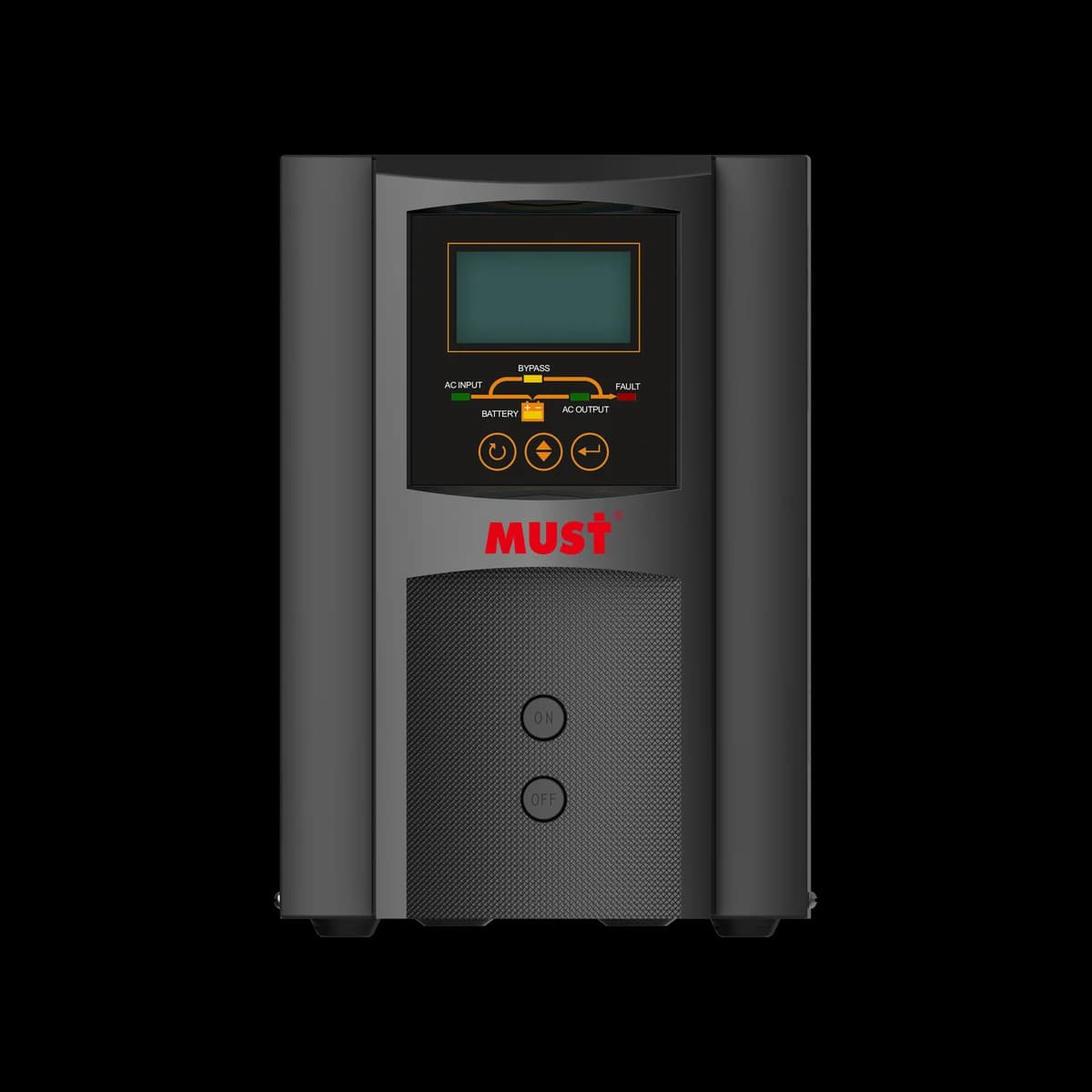

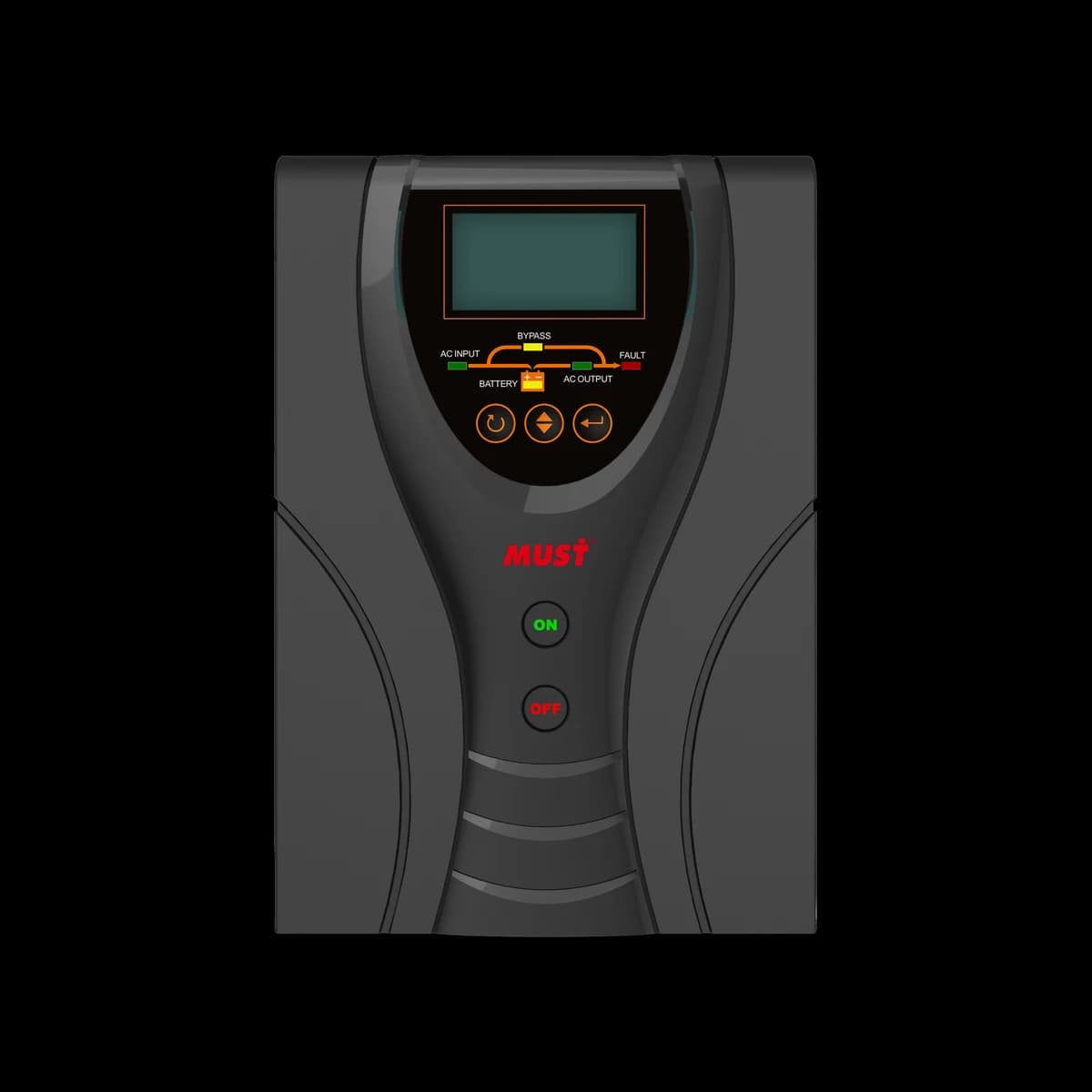

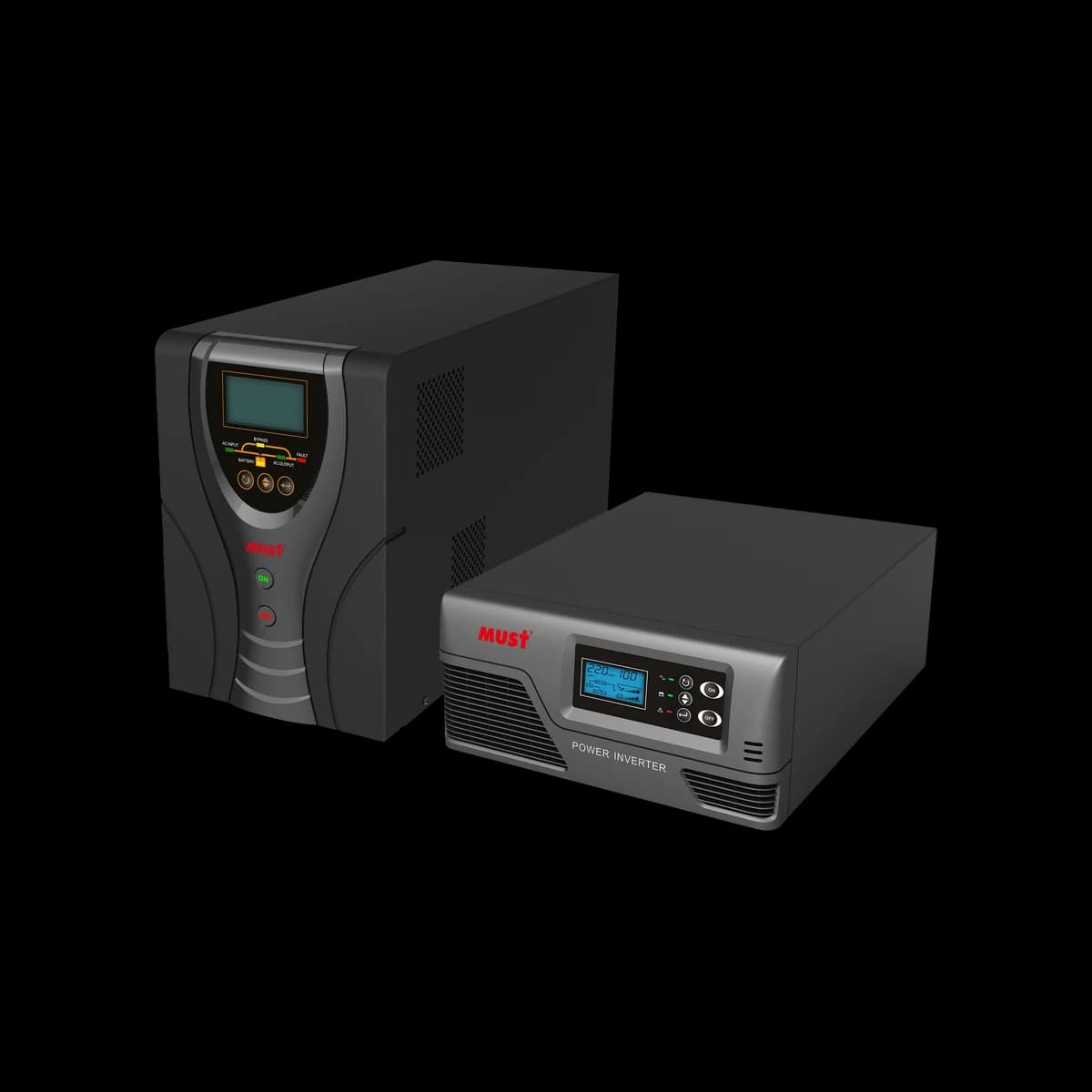

Inversor solar MUST EP2100 LV da linha 2026, com potência de 300–1000 W e saída CA de 110/120 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência300–1000 W
Saída CA110/120 V
Bateria12 V CC
Forma de ondaSenoidal pura
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||||
|---|---|---|---|---|
| MODELO | EP21-0312 LV | EP21-0612 LV | EP21-0812 LV | EP21-1012 LV |
| Default Battery System Voltage | 12VDC | |||
| SAÍDA DO INVERSOR | ||||
| Rated Power | 300W | 600W | 800W | 1000W |
| Surge Rating | 900VA | 1800VA | 2400VA | 3000VA |
| Waveform | Pure sine wave | |||
| Voltage Regulation | Battery mode: 110 or 120VAC Line mode: 95~125VAC | |||
| Output Frequency | 50Hz / 60Hz | |||
| Inverter Frequency (Peak) | >75% | |||
| Bypass Efficiency | >95% | |||
| Output Transfer Time | 8ms(typical) 12ms(max) | |||
| ENTRADA CA | ||||
| Voltage | 110/120VAC | |||
| Selectable Voltage Range | 70~140VAC ±5% | |||
| Low battery voltage alarm | 70VAC ±5% | |||
| Low battery voltage recover | 75VAC ±5% | |||
| High battery voltage alarm | 140VAC ±5% | |||
| High battery voltage recover | 135VAC ±5% | |||
| Low Frequency Alarm | 45 ±5Hz | |||
| Low Frequency Recover | 46 ±5Hz | |||
| High Frequency Alarm | 65 ±5Hz | |||
| High Frequncy Recover | 64 ±5Hz | |||
| Nominal Input Range | 50Hz / 60Hz ±5Hz | |||
| AC Auto Restart | YES | |||
| BATERIA | ||||
| Minimum start voltage | Low Battery Voltage Cutoff+0.5V | |||
| Low battery voltage alarm | Low Battery Voltage Cutoff+0.5V | |||
| Low battery voltage cutoff | 10-12.0VDC | |||
| High battery voltage alarm | (12-14.5V)+1V for 12VDC mode (*2 for 24VDC) | |||
| AC CHARGE | ||||
| Floating Voltage | 12-14.5VDC | |||
| Boost Voltage | 12~14.5VDC | |||
| Maximum Charge Current | 300W | 600W | 800W | 1000W |
| 10A | 20A | 25A | 30A | |
| BYPASS E PROTEÇÕES | ||||
| Input Waveform | Pure sine wave | |||
| Input Frequency | 50Hz or 60Hz | |||
| Overload Protection | >110%~125% Load fault after 60s; >125%~150% Load fault after 3s; >150% Load fault after 500ms | |||
| Over Temperature Protection | ≥90°C | |||
| Bypass Output Protection | 15A 250VAC | |||
| Output Circuit Protection | YES | |||
| Battery Reverse Protection | Optional | |||
| Battery Low Voltage Protection | YES | |||
| Battery High Voltage Protection | YES | |||
| Bypass Breaker Rating | 15A | |||
| Maximum Bypass Current | 15A | |||
| OUTROS PARÂMETROS | ||||
|---|---|---|---|---|
| MODELO | EP21-0312 LV | EP21-0612 LV | EP21-0812 LV | EP21-1012 LV |
| MECHANICAL SPECIFICATION | ||||
| Machine Dimension (W*H*D)(mm) | 300.5*319*132.2 | |||
| Package Dimension (W*H*D)(mm) | 391*187*325 | |||
| N.W(kg) | / | |||
| G.W(kg) | / | |||
| GERAL | ||||
| Operating Temperature | 0°C~40°C 0~90% relative humidity (non-condensing) | |||
| Storage Temperature | -15°C to 55°C | |||
| Altitude | ≤1000M | |||
| Audible Noise | ≤60dB | |||
| Display | LED+LCD | |||
| Cooling Mode | Fan cooling | |||
| Fan Starting | >45°Cstarting, <30°C Closing | |||
| Communication | USB | |||
| Standard Warranty | 2 year | |||
O preço depende do modelo e da configuração.
