MUST EnergySolução durável
Baterias LiFePO4MUST
LP1600

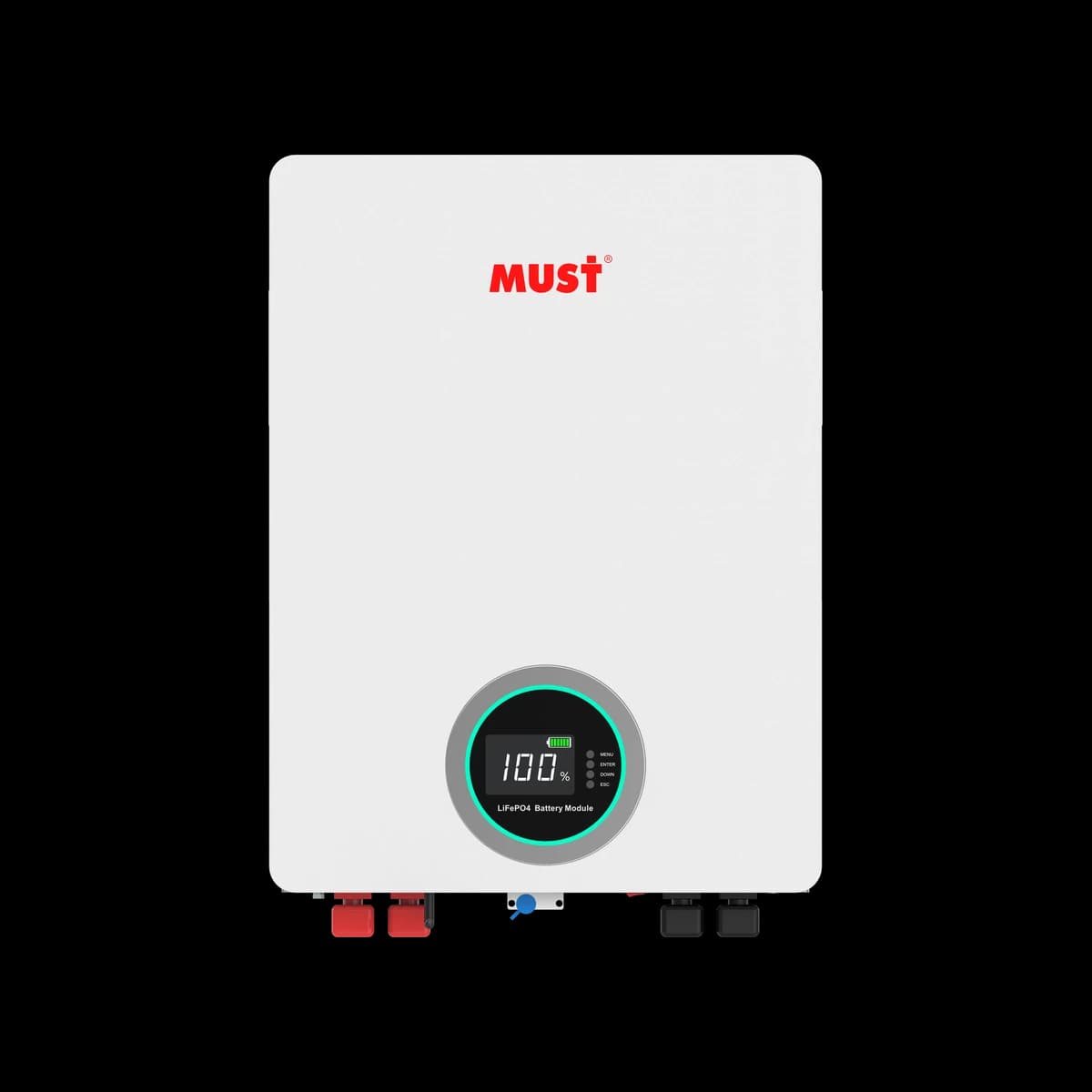

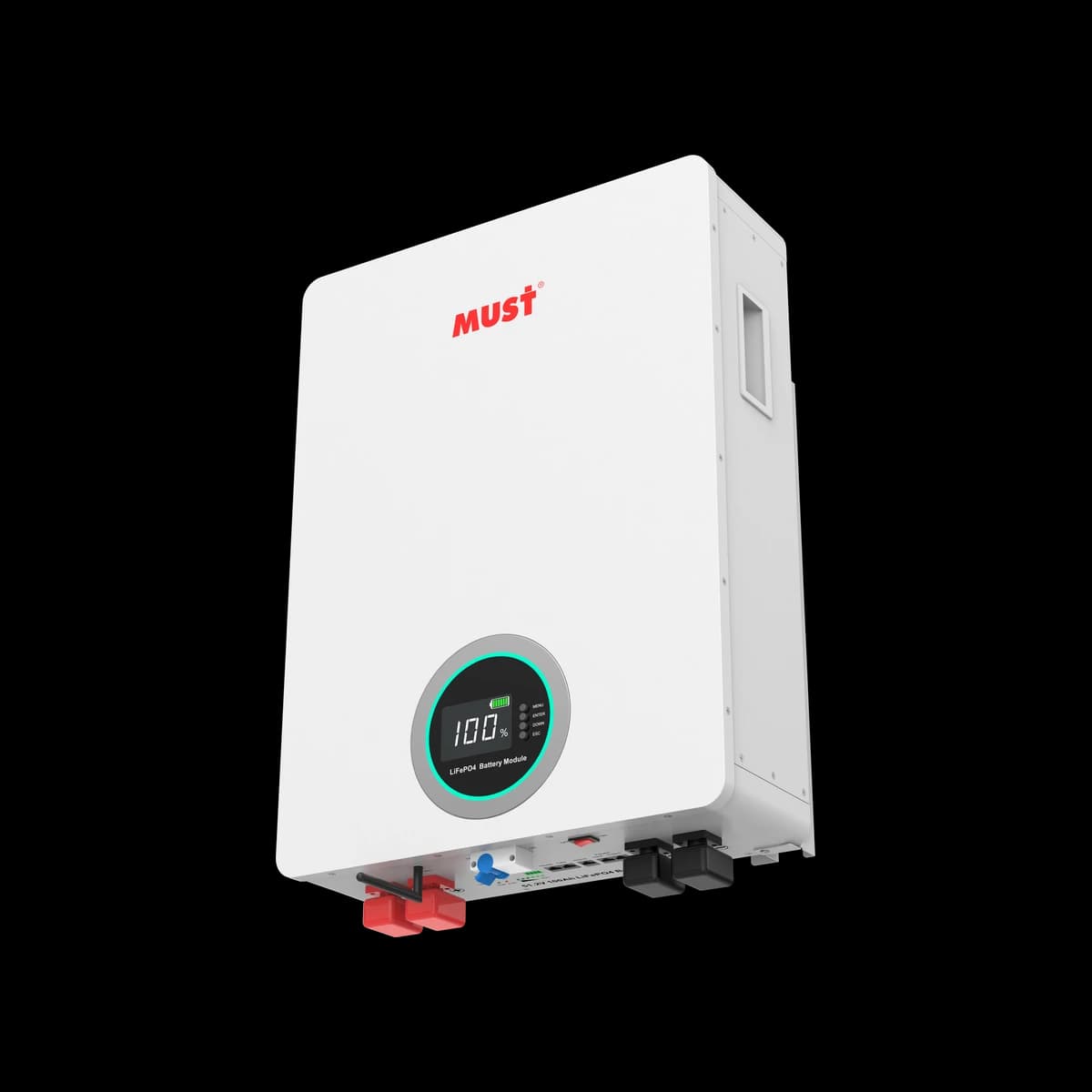

Bateria LiFePO₄ MUST LP1600 da linha 2026, com energia de 2,56–30,72 kWh e tensão nominal de 25,6/51,2 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Energia2,56–30,72 kWh
Tensão nominal25,6/51,2 V
Capacidade100–600 Ah
ComunicaçãoWi-Fi e Bluetooth
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dados técnicos | LP16-24100 | LP16-24200 | LP16-24300 | LP16-48100 | LP16-48200 | LP16-48300 | LP16-48320 | LP16-48410 | LP16-48600 | |
| Nominal Voltage | 25.6V | 51.2V | ||||||||
| Nominal Capacity | 100Ah | 200Ah | 300Ah | 100Ah | 200Ah | 300Ah | 320Ah | 410Ah | 600Ah | |
| Nominal energy | 2560Wh | 5120Wh | 7680Wh | 5120Wh | 10240Wh | 15360Wh | 16384Wh | 20992Wh | 30720Wh | |
| Max. output power | 2.5KW | 3.5KW | 5KW | 5KW | 7.5KW | 10KW | 10KW | 10KW | 10KW | |
| Life Cycles | ≥6000(25°C+3°C) | |||||||||
| Recommended Charge Voltage | 29.2V | 58.4V | ||||||||
| Recommended Charge Current | 20A | 40A | 60A | 20A | 40A | 60A | 60A | 80A | 120A | |
| End Of Discharge Voltage | 22V | 44V | ||||||||
| Standard Method | Charge | 20A | 40A | 60A | 20A | 40A | 60A | 60A | 80A | 120A |
| Discharge | 50A | 100A | 150A | 50A | 100A | 150A | 150A | 150A | 150A | |
| Maximum Continuous Current | Charge | 100A | 150A | 200A | 100A | 150A | 200A | 200A | 200A | 200A |
| Discharge | 100A | 150A | 200A | 100A | 150A | 200A | 200A | 200A | 200A | |
| BMS Cut-Off Voltage | Charge | 29.2V (3.65V/Cell) | 58.4V (3.65V/Cell) | |||||||
| Discharge | 22.0V (2.75V/Cell) | 44.0V (2.75V/Cell) | ||||||||
| Temperature | Charge | 0~50°C | ||||||||
| Discharge | -20~55°C | |||||||||
| Storage Temperature | -5~35°C | |||||||||
| Shipment Voltage | ≥25.6V | ≥51.2V | ||||||||
| Safety Function | Over-charge, Over-discharge, Over-current, Low/High-temperature, Short-circuit Protections | |||||||||
| Module Parallel | Up to 15 units | |||||||||
| OUTROS PARÂMETROS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dados técnicos | LP16-24100 | LP16-24200 | LP16-24300 | LP16-48100 | LP16-48200 | LP16-48300 | LP16-48320 | LP16-48410 | LP16-48600 | |
| Communication | CAN2.0/RS232/RS485 | |||||||||
| IP Protection level | IP21 | |||||||||
| Case Material | SPCC | |||||||||
| Installation Mode | Wall-mounted, Stacked-mounted, Rack-mounted(optional) | Vertical-mounted | ||||||||
| Machine Dimension (W*H*D) (mm) | 442*485.5*177 | 442*486.5*250 | 442*495*230 | 442*625.5*177 | 442*686.5*250 | 490*923*265 | 600*1093*264 | 744*1093*264 | ||
| Package Dimension (W*H*D) (mm) | carton box | 547*227*557 | 547*300*557 | 530*305*615 | 557*227*688 | 560*305*750 | / | / | / | |
| wooden box | / | / | / | / | 569*405*759 | 1000*565*450 | 1194*701*440 | 1225*870*400 | ||
| N.W (kg) | 27 | 45 | 58 | 45 | 81 | 117 | 170 | 208 | ||
| G.W (kg) | carton box | 29 | 49 | 71 | 79 | 86 | / | / | / | |
| wooden box | / | / | / | / | 97 | 137 | 194 | 234 | ||
| * Variations in dimensions and weights may occur due to production batches. | ||||||||||
| Operating altitude | ≤4000m | |||||||||
| Charge Retention And Capacity Recovery Capability | Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention rate≥90%, Recovery rate of charge≥90% | |||||||||
| Warranty | 5 years | |||||||||
| Certification & Standards | CE-EMC (EN 61000-6-3: 2007+A1: 2011+AC: 2012 EN IEC 61000-6-1: 2019) IEC62619-1:2018; IEC62619:2022; IEC62619:2017; UN38.3/ MSDS | |||||||||
O preço depende do modelo e da configuração.
